Programmable Logic Controller Wire Stranding Machine CE

Name: Programmable Logic Controller Wire Stranding Machine CE
Brand: Beyde
Price: 1 USD

China Programmable Logic Controller Wire Stranding Machine CE wholesale

Brand Name : Beyde

Model Number : tubular closer

Place of Origin : Hejian,China

MOQ : 1 Set

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 120 Set/Year

Delivery Time : 70-150 Days after receive deposit

Packaging Details : Container loading with safety packing

Color : Customized

Warranty : 12 Months

PLC : optional

Usage : Stranding

Name : Tubular stranding machine

Application : steel,aluminium,stranding steel wire,ACSR and AAAC,Al wire

Smallest take-up bobbin : PN800,PN1000

Take-up bobbin size : PND800-PND1600,PN-1200-2000

Wire material : Steel,Copper,stainless steelwire,Aluminum

Largest take-up bobbin : PN1600,PN2500

Contact Now

Welded Mesh Fence Making Tubular Stranding Machine Wire Stranding Machine

1. Description

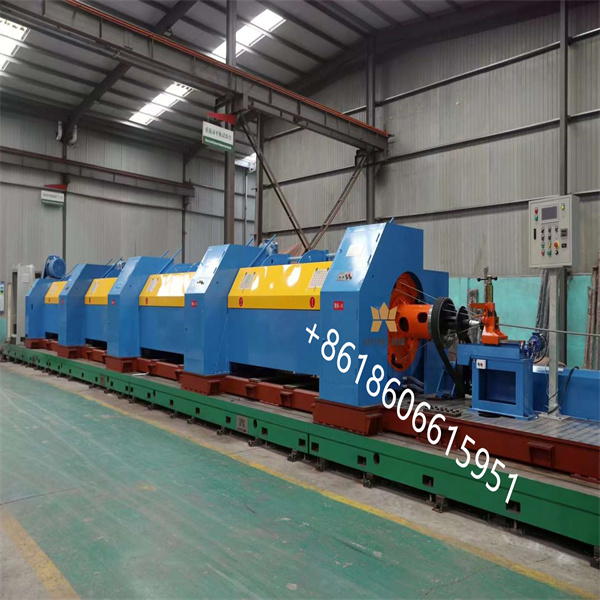

This tubular stranders line is used for stranding Steel , AL and CU wire ,as well as cabling the control cables.

2. Characteristic

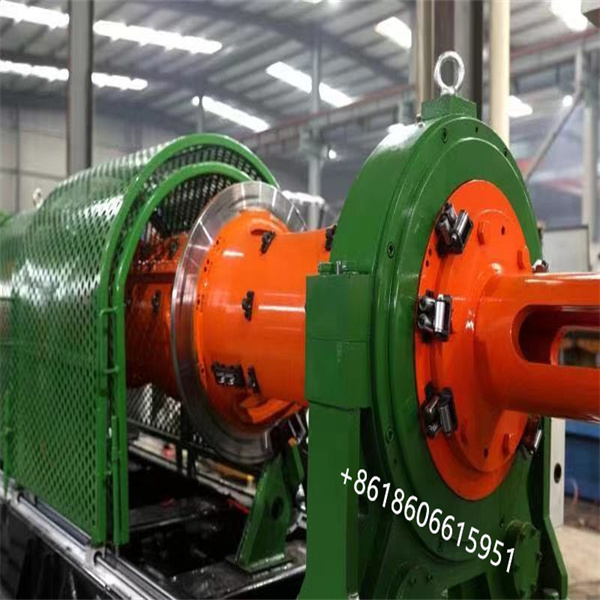

2.1 This tubular stranding body is a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

2.2 Bobbin is clamped by disc springs and released by pneumatic control device.

2.3 Wire break and wire emergent stops provided for all the line

2. 4 The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable.

3. Main Specification

Reel size	Max. rotation speed (rpm)				Wire dia.
Reel size	6B	12B	18B	24B	AL(mm)	CU(mm)	Steel(mm)
200(mm)	1200	900			1.0~2.5	0.2~1.5	0.2~0.8
315(mm)	900	800			1.0~2.5	0.5~1.8	0.3~1.0
400(mm)	900	800	550		1.0~2.5	1.4~4.0	0.6~3.0
500(mm)	800	600	450	350	1.3~5.0	1.8~5.0	1.3~3.5
560(mm)	700	500	400	300	1.3~5.0	1.8~5.0	1.3~3.5
630(mm)	700	500	330	260	1.3~5.0	2.0~6.0	1.3~3.5
710(mm)	400	300			1.3~5.0	2.0~6.0	1.3~3.5
760(mm)	350				1.3~5.0	2.0~6.0	1.3~3.5

Programmable Logic Controller Wire Stranding Machine CE

Beyde Trading Co., Ltd. was established in 1983. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Beyde Trading Co., Ltd. ., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
