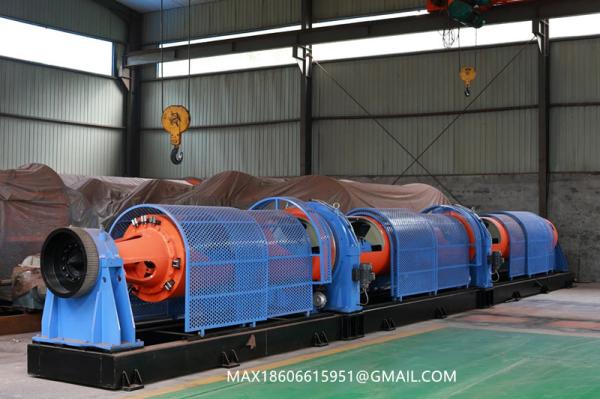

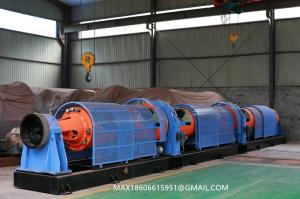

High Speed Tubular Stranding Machine

Brand Name : Beyde

Model Number : tubular closer

Place of Origin : Hejian,China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 120 Set/Year

Delivery Time : 70-150 Days after receive deposit

Packaging Details : Container loading with safety packing

Price : Negotiate

Type : Tubular Structure

Warranty : 12 Months

PLC : optional

Usage : Copper Wires

Contact Now

TIMKEN or NSK Brand Bearing TUBULAR CLOSER, 8-BOBBIN x 38". CLOSING MACHINES 75kW
Detailed Product Description
Usage: Stranding Type: Tubular Structure
Application: Al , Steel , Copper Wires Motor: Siemens
Bearing: NSK Color: Decided By User

1. Application

It is used for stranding the steel wires , aluminum wires and copper wires , as well as stranding of control cables

The machine equips with protection measures such as automatic stopping device for wire breakage , emergency stop., it is safe and relaible

2. Technical Parameter

Bobbin size(mm) Max. rotation speed(rpm) Wire dia.(mm)
6B 12B 18B 24B Aluminum Copper Steel
200 1200 900 1.0-2.5 0.2-1.5 0.2-0.8
315 900 800 1.0-2.5 0.5-1.8 0.3-1.0
400 900 800 550 1.0-2.5 1.4-4.0 0.6-3.0
500 800 600 450 350 1.3-5.0 1.8-5.0 1.3-3.5
560 700 500 400 300 1.3-5.0 1.8-5.0 1.3-3.5
630 700 500 330 260 1.3-5.0 2.0-6.0 1.3-3.5
710 400 300 1.3-5.0 2.0-6.0 1.3-3.5
760 350 1.3-5.0 2.0-6.0 1.3-3.5
