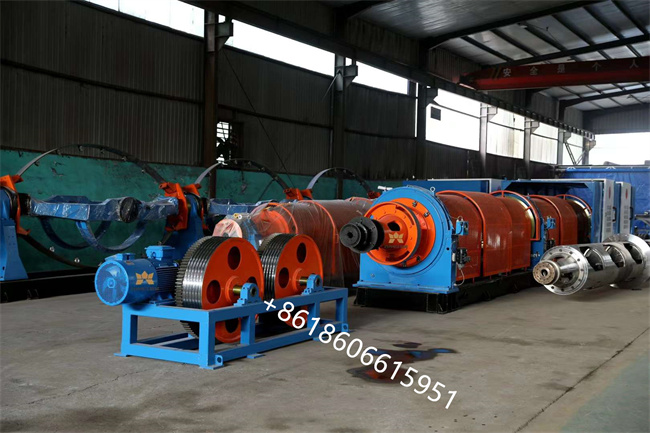

Latest JJG-400/1+6 Tubular Strander and Stranding Machine Quality Line
Application: This machine is mainly used for the stranding of 7-Steel core aluminum stranded wire, aluminum and copper. also be used for stranding steel wire rope and insulated wire.
| | Max. Rotation Speed (rpm) | Max.Rotation Speed Of Cage (with Stranding Bow) | Single Wire Diameter (mm) |
| | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| | | | | | | | | | |
| Input wire diameter | Ø 1.0－5.0mm |
| Max stranding OD | Ø15mm |
| Max rotation speed | 600r/min |
| Strand pitch | 42-320mm |
| Traction line speed | 25-191m/min |
| Main motor power | 18.5KW(AC) |
| Pay-off bobbin size in cage | PN400 |
| Capstan wheel size | Ø 800+ Ø 1000mm |
| Central pay-off size | PN400 |
| Take-up bobbin size | PN800-PN1600 |
| Machine center high | 1000mm |
Q: Why do I choose your company?
A: We have more than 40 years of professional experience in the production of cable machinery, providing high-quality,
high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
Enable to give you a quotation for the cable stander, there is some necessary information that we need to know:
1. Cable size structure, Cable diameter?
2. How many kgs/meters to strand per hour?
3. Reel/Flange Diameter, we need to quote correct take-up and pay off machine
4. Bobbin drawing
