Cabling Planetary Stranding Machine With Hysteresis Tension And Taping Head

Name: Cabling Planetary Stranding Machine With Hysteresis Tension And Taping Head
Brand: BEYDE
Price: 1 USD

China Cabling Planetary Stranding Machine With Hysteresis Tension And Taping Head wholesale

Brand Name : BEYDE

Model Number : 630

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : L/C

Supply Ability : 200 SET/YEAR

Delivery Time : 120 DAYS

Packaging Details : CONTAINER

Usage : Stranding,Twisting

Color : Customized

Application : Metal wire,Al wire,Steel Wire Rope,stranding wire and cable

Name : Planetary stranding machine,wire planetary stranded machine

Voltage : 380V

Power : 380V 50HZ

Function : control cable,power cable

Stranding pitch : Step-less

Bearing : NSK/SKF,NSK

Contact Now

Planetary Cabling Machine With Hysteresis Tension and Taping Head

Application: The equipment is mainly used for the cable forming of insulated core wires such as steel strand, control cable, signal cable and small-size plastic cable, and has the function of winding at the same time.

The equipment is composed of PLC program control + touch screen + variable frequency speed regulation control + pneumatic control. The synchronous performance deviation of the equipment from start-up, normal operation, slow shutdown, emergency stop and other states shall not exceed 3%, so as to ensure the stability of the winch pitch. The setting out tension in the winch cage is provided by the hysteresis tensioner. The tension is adjusted online through the man-machine interface without shutdown. The tension output is balanced and easy to adjust

Main Parameter:

2.1	Input wire diameter	Copper Ø 1.0－4.0mm
		Aluminum Ø 1.0－4.0mm
		Insulate core Ø 2.0－10mm
		Steel Ø 0.9－3.6mm
2.2	Max stranding OD	Ø45mm
2.3	Max rotation speed	6B:80r /min 12B:70r/min
2.4	Strand pitch	80-800mm (stepless adjustable)
2.5	Max line speed	32m/min
2.6	6 bobbin motor power	30KW(AC)
2.7	12 bobbin motor power	37KW(AC)
2.8	Capstan motor power	22KW(AC)
2.9	Pay-off bobbin size in cage	PND630
2.10	Non-metal taping head max speed	800r/min
2.11	Non-metal taping head pitch	4-60mm (stepless adjustable)
2.12	Non-metal taping head power	2.2KW(AC)
2.13	Copper tape shielding head max speed	606r/min
2.14	Copper tape shielding pitch	5-220mm (stepless adjustable)
2.15	Copper tape shielding head power	7.5KW(AC)
2.16	Capstan wheel size	Ø 1400mm
2.17	Central pay-off size	PN800-PN1600
2.18	Take-up bobbin size	PN1250-PN2500
2.19	Machine center high	1000mm

Main components:

3.1	Ø 1600mm end shaft Pay-off rack	1 set
3.2	6,12 bobbins strand cage	Each 1 set
3.3	Assembling die holder	2 set
3.4	Concentric Non-metal taping machine	2 set
3.5	Copper tape shielding machine	1 set
3.6	Meter counter	1 set
3.7	Ø 1400 dual wheel capstan devic	1 set
3.8	Ø 2500 end shaft type take-up rack	1 set
3.9	Electric control cabinet	1 set
3.10	Safety protection fence and cover	1 set

Cabling Planetary Stranding Machine With Hysteresis Tension And Taping Head

Product Tags:

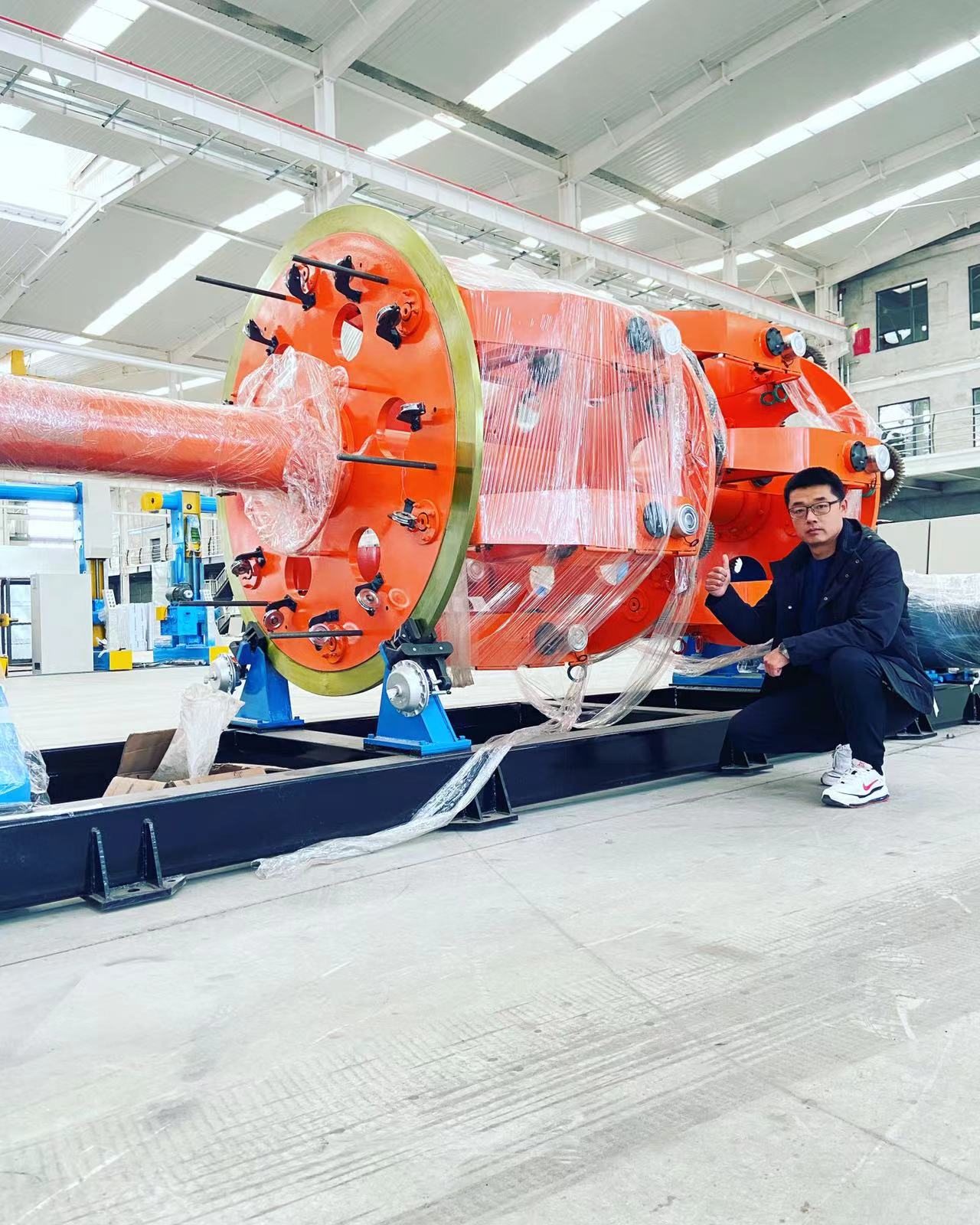

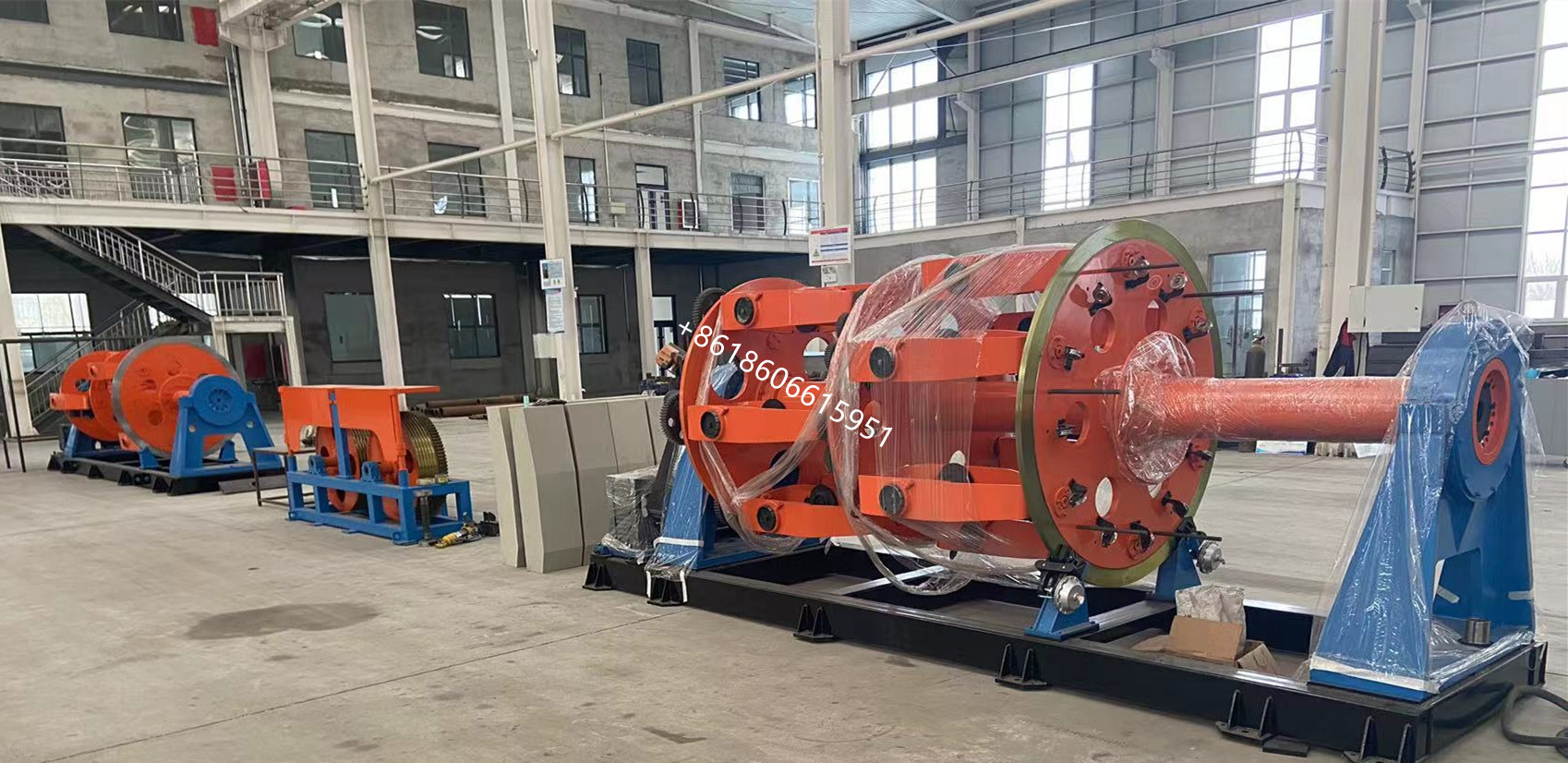

Cabling Planetary Stranding Machine With Hysteresis Tension And Taping Head Images
