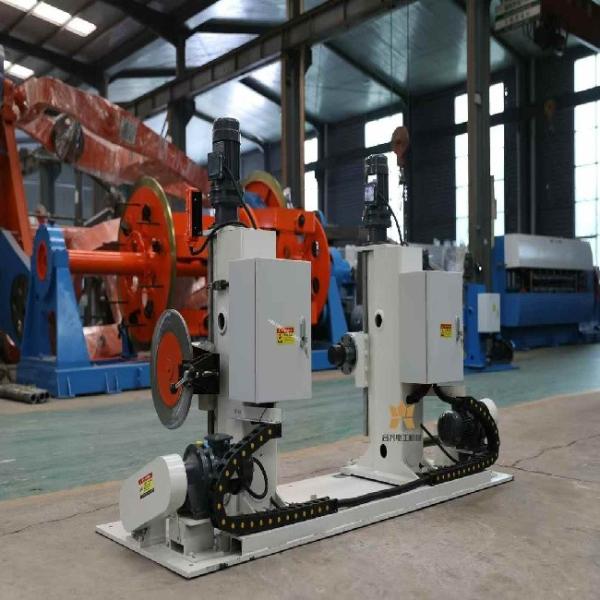

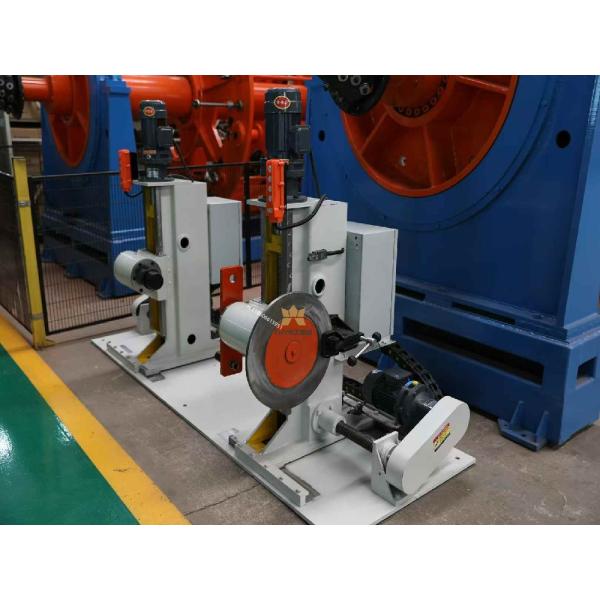

Pay-Off And Take-Up Cable Making Machine DIN800-1600

  • 1
  • 2

Brand Name : Beyde

Model Number : 800-1600

Certification : CE

Place of Origin : Hebei

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200 set/year

Delivery Time : 40 days

Packaging Details : Safety container packing

Usage : Winding wire to bobbin

Voltage : 3phase 380V 50HZ

Warranty : 12 Months

Color : Customized

Capacity : 4000kg

Foundation : no need

Clamp : electric type

Lifting : electric type

Protection : Limited position

Reel range : PN800 to PN1600

Type : Column type

Contact Now

High-Quality Cost-Effective Pay-Off And Take-Up For Cable Machinery DIN800-1600

A payoff machine is an equipment used in the systems that supply materials that are in the form of a spool or coil into the manufacturing process. It is also used for inspection operations, or simply as a take-up unit for re-spooling. The pay-off machines are designed specifically for each application.

Specification range of take-up reel: PN800-PN1600

Reel width: 600-1120mm

Max load capacity: 4 tons

op diameter: Ø 80/125mm

Max take-up speed: 60m/min

Take-up motor power: 5.5KW (AC)

Lifting motor power: 1.5KWx2 units

Clamping and release motor power: 1.1KW

Traverse motor power: 1.1kw

Traverse form: electronically controlled move

Structural features: Ø1800 protal type take-up and traverse wire frame, consisting of a take-up frame, a take-up gearbox, a screw traverse, etc.

There are gears inside the box to adjust the speed.

The take-up frame can respectively meet the clamping, loosening, rising and falling actions of Ø1000-Ø 1800 wire reels. The lifting mechanism can lift left and right at the same time, or move independently. The left column can move single-movement, which is convenient for clamping the wire reel, and is equipped with electrical limit protection.

Cable traverse frame: screw type cable arrangement, electronically controlled commutation, intermittent arrangement, and the arrangement pitch is infinitely adjustable.

The entire machine is coordinated and controlled by a separate programmable logic controller (PLC) and a human-machine interface (color touch screen). The human-machine interface can be used to set the winding torque, cable pitch, etc.

Type 1600 2000 2500 3150 4000
Reel: 800/1600 1000/2000 1250/2500 1600/3150 2500/4000
Max.flange dia. (mm) 1600 2000 2500 3200 4000
Min.flange dia.(mm) 850 1000 1250 1600 2000
Min.overall width(mm) 600 600 900 1180 2100
Max.overall width(mm) 1180 1500 1900 2120 2500
Min.barrel dia.(mm) 400 500 500 800 1000
Bore (mm) 80 80100 80100-125 80100-125 80/100-125
Max.reel weight(kg) 6000 8000 12000 15000 20000
Min. wire dia.(mm) 4 5 7 8 15
Max.wire dia.(mm) 40 50 70 120 200
Max.rotation speed(RPM) 7/17/37 7/17/37 7/17/37 7/17/37 18
Traverse range (mm 5-50 6-60 8-90 9-120 15-150
Motor gear motor and torque motor
