High Efficient Copper Strip Shielding Machine For Copper Wire Tape

  • 1
  • 2

Brand Name : Beyde

Model Number : 720

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 200 Set/Year

Delivery Time : 150 Days

Packaging Details : Container

Usage : Stranding,Twisting,Rigid frame cable wire stranding machine

Color : as requirement

Name : Rigid Frame Wire cable Stranding Machine,rigid type stranding equipment

Application : stranding wire and cable

Wire material : copper,aluminum,steel

Cage rotate speed : 40-700r/min.

Take-up reel : PND630-PND1800

Contact Now

The New Model Efficient Copper Strip Shielding Machine For Copper Wire Tape

3.1 tape material: copper tape

3.2 Copper belt pitch: 0-558.4 mm (stepless adjustable)

3.3 Maximum Speed of Copper Lead: 700r/min

3.4 Tape Specification Diameter x Aperture x Bandwidth: 630 x 160 x (20-60) mm

3.5 winding structure: concentric

3.6 Ground shaft drive, stepless speed change, with left, left and right cladding process switching function.

3.7 The machine is a concentric structure with fast rotation speed, smooth operation and easy adjustment of the angle of release guide roll.

3.8 The release tension is controlled by electromagnetic tension. The tension is transmitted to the bag chuck through the tooth-shaped belt. The tension is adjusted on-line electronically without stopping.

3.9 Release chuck and copper lead disc brake function are separated. They have independent pneumatic brake function, which is consistent with the brake of the whole machine and with the brake of the release disc, so as to avoid high-speed rotating inertia pulling off the copper belt (this characteristic changes the disadvantage of pulling off the copper belt caused by the inertia force of the original chuck and the large plate rotating in the same direction).

3.10 Copper lead has the function of "Pulse Band Breaking Stop", which can effectively avoid, stop in time when the tape is broken and finished, and effectively avoid the repair process of missing package.

3.11 is equipped with tape rack, and the inlet can be equipped with die stabilized cable core.

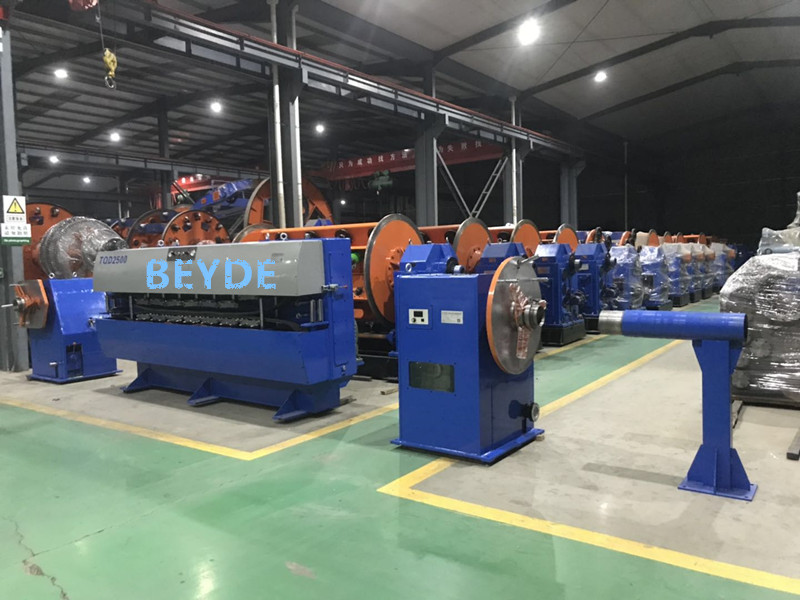

High Efficient Copper Strip Shielding Machine For Copper Wire Tape
